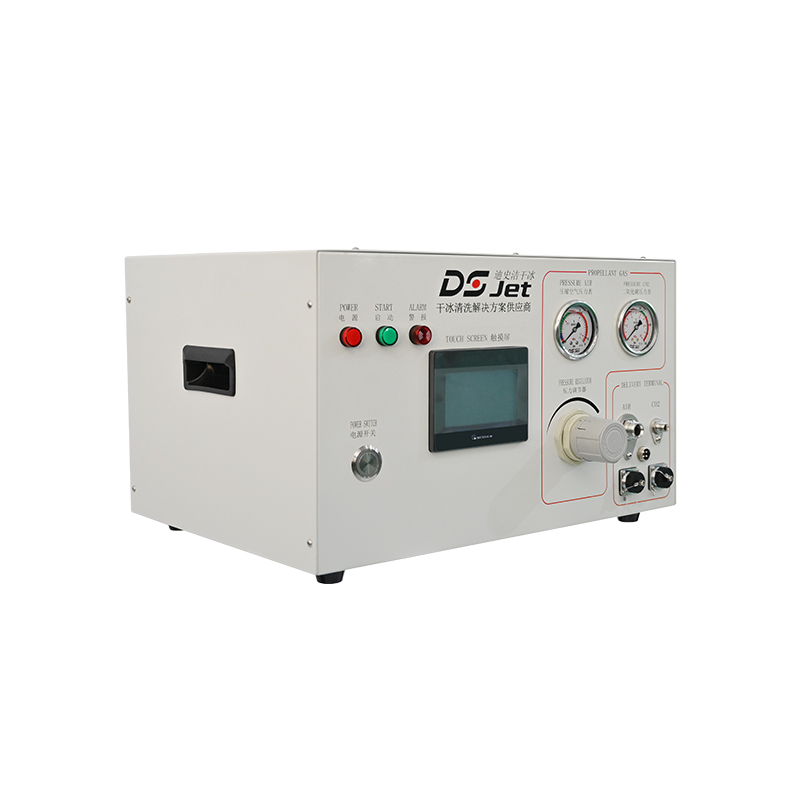

DSJet Snowflake Cleaner
Snowflake Cleaner
DSJet developed compact snowflake cleaning equipment, can be used to clean all kinds of precision product surface, such as PCBA precision cleaning, wafer cleaning, chip industry surface cleaning. New energy manufacturing cleaning, lithium battery cleaning, battery tray cleaning, car bumpers and other automotive surface cleaning. The snowflake cleaning is gentle, can be used in the removal of surface oil, dust while ensure the surface finish achieve the requirement of the procedure.
Related accessories
No related accessories!!DSJet Built-in high-efficiency filter device, high-efficient and rapid air filtration of water, Grease, Rust and other impurities.
The core components of the equipment are imported components
Electric power: 220v, 50hz and 200w.
Size: 505mm*400mm*300mm
Weight: 23kg
Compressed air consumption: 0.2 ~ 2m3/min
Working pressure of compressed air: 5~16bar
Consumption of liquid carbon dioxide: 0.1~1kg/min
Working pressure of liquid CO2: 55~70bar
AIR heating: Yes.
Advantages of dry ice cleaning
1. High efficiency
Traditional cleaning requires disassembly, cooling, cleaning, and reassembly; dry ice cleaning need no disassemble; improve efficiency and protect the accuracy of the equipment.
2. Thorough cleaning
Traditional cleaning is difficult to clean the corners and crevices, high precision, complex structure of the mould; Dry ice can effectively clean corners, crevices, dead ends; no pollution, no residue.
3. Non-destructive
Traditional cleaning use polishing, soaking and other ways to potentially damage the mould, reduce precision and product quality; dry ice cleaning strength can be adjusted, does no damage to the mould and product, extend the service life of the mould, while improving product quality.
4. Dry
Traditional cleaning uses water, solvents, etc., resulting in conductivity and residue; dry ice cleaning is dry, thus can be in contact with electronic parts, non-conductive, non-corrosive, non-rust.
5. Environment protection
Traditional cleaning uses water, solvents, etc., which has an impact on human health and secondary pollution to the environment, and increases the treatment cost of secondary pollutants; Dry ice cleaning avoids secondary pollution, is non-toxic, tasteless and residue-free, and CO2 is a recyclable and renewable resource, which is environmentally friendly.
Clean the mold, no water, no chemicals, and no secondary waste.
Electric power | 220v, 50hz and 200w |
Size | 505mm*400mm*300mm |
Weight | 23kg |
Compressed air consumption | 0.2 ~ 2m3/min |
Working pressure of compressed air | 5~16bar |
Consumption of liquid carbon dioxide | 0.1~1kg/min |
Working pressure of liquid CO2 | 55~70bar |
AIR heating | Yes |
Stable ice supply system
Greatly reduce the loss of dry ice
Strong and portable
Large withstand voltage range
Easy maintenance
Advanced nozzle
Greatly reduce the loss of dry ice
operational safety
